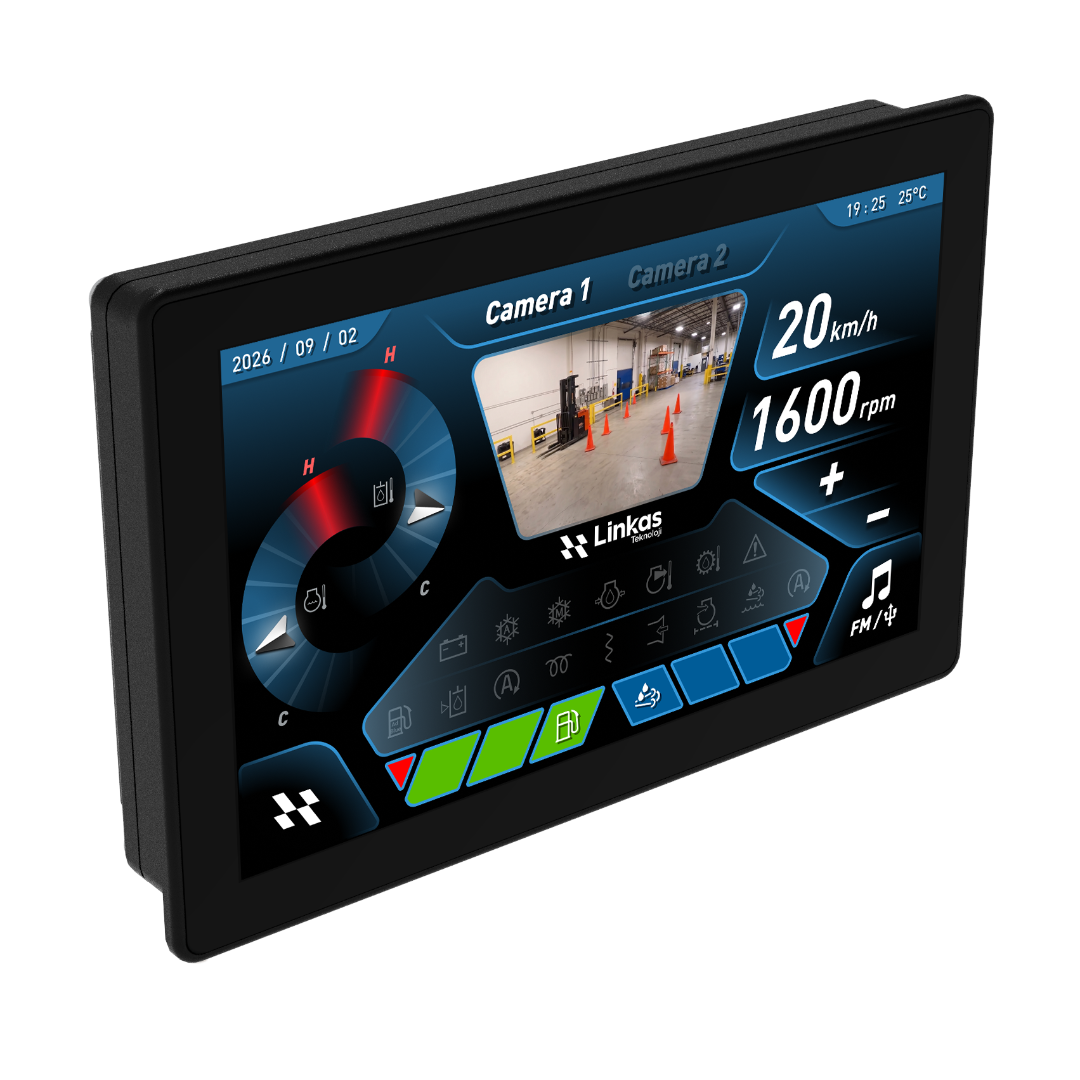

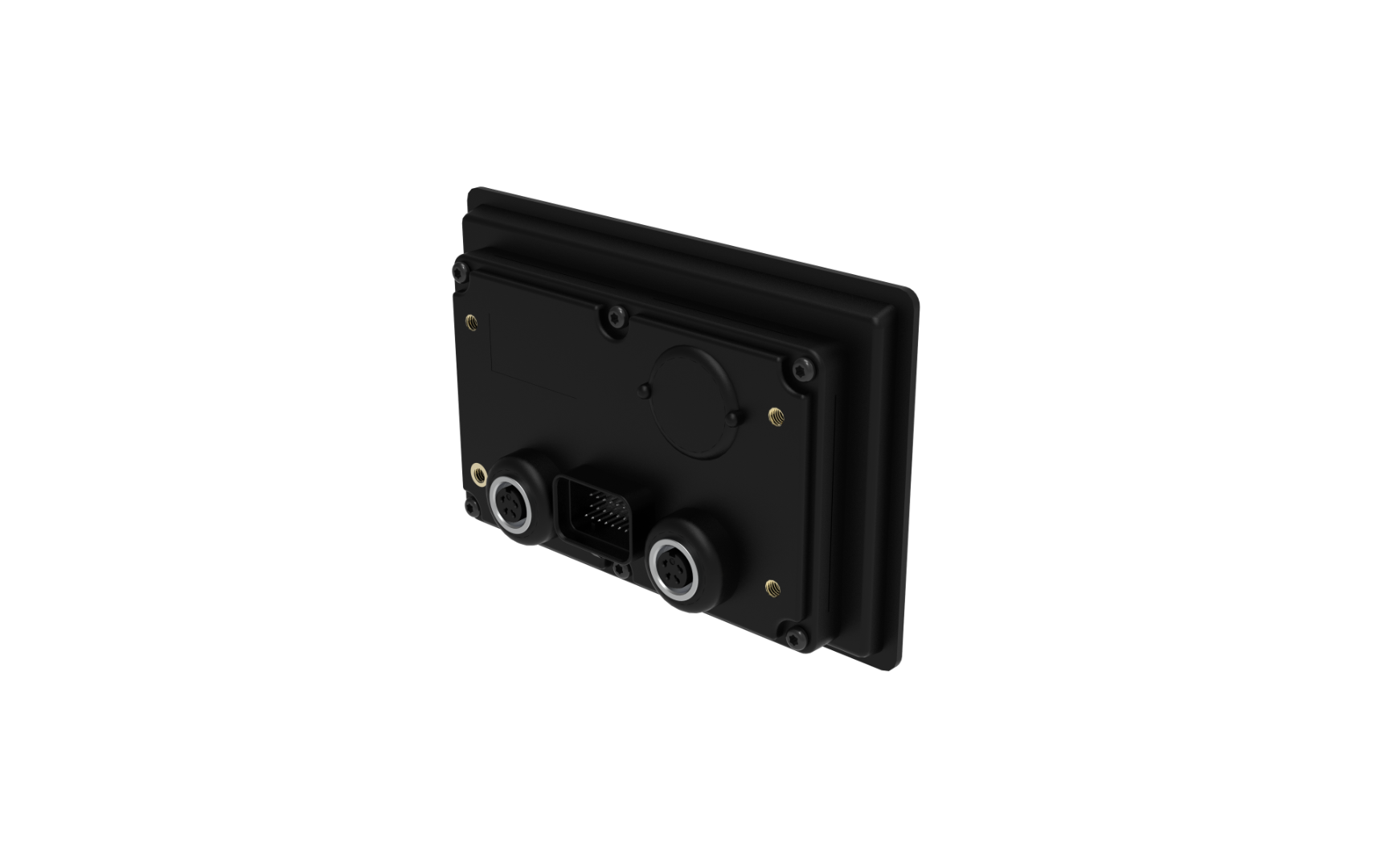

7 INCH TYPE 4

Technical Specifications

• 12V / 24V system support
• Operating temperature -30/+85°C
• IP67 protection class
• 7 inch display (1024x600 pixel resolution, 1600nits luminance)
• i.MX RT1170 Cortex-M7 @1 GHz + Cortex-M4 @400 MHz processor
• 16 MB code memory
• 32 MB SDRAM
• 16 MB Data Flash
• 8 KB FRAM
• Embedded wizard support with double buffer and graphic acceleration
• Software update support via USB and CANBUS(J1939)
• 10 finger support capacitive touch panel
• 97 dB internal buzzer
• RTC
• USB2.0 port with external connector
• 2x analog camera input
• 2x CANBUS
• 4x source outputs with pwm support
• 24x analog inputs
• 2x frequency inputs
• 1x RS232
• 3 axis accelerometer(±16g)
